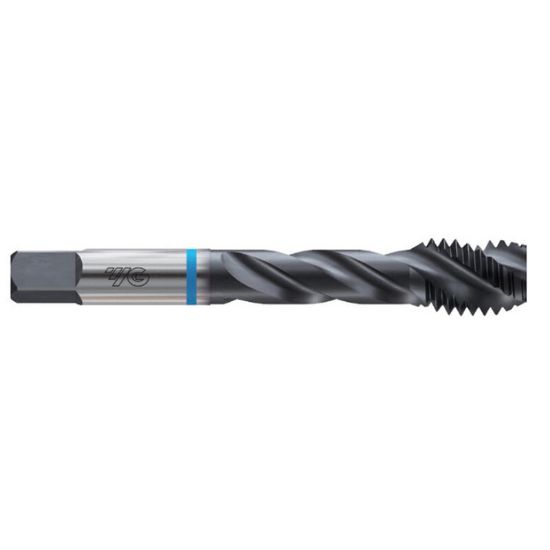

YG-1 BI583 1/2-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BI583
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Coating Hardslick
Performance Rating High Performance
Dimensional Specifications
Thread Size 1/2"
Tool Material Steel
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
