  • YG-1 B2343 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN

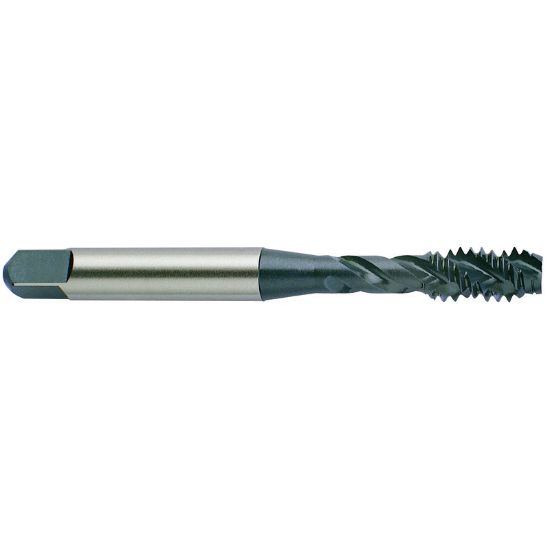

Picture of YG-1 B2343 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN

YG-1 B2343 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-B2343
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Illinois
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Cut Rating <30HRC Steel, Stainless Steel
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
