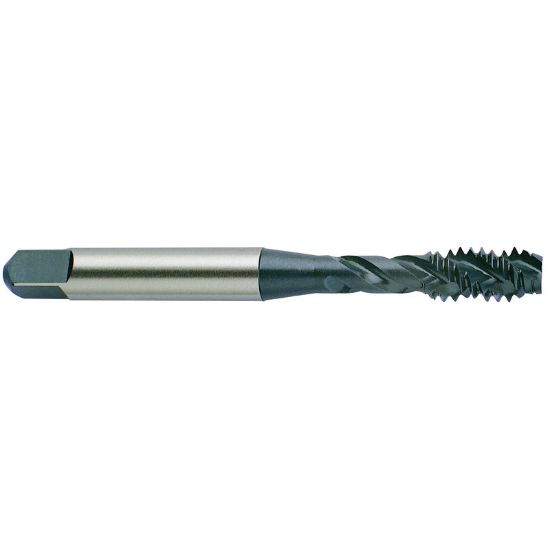

YG-1 B0464 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-B0464
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cut Rating <30HRC Steel, Stainless Steel
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Thread Limit H4/GH4
Tap Square 0.2380
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
