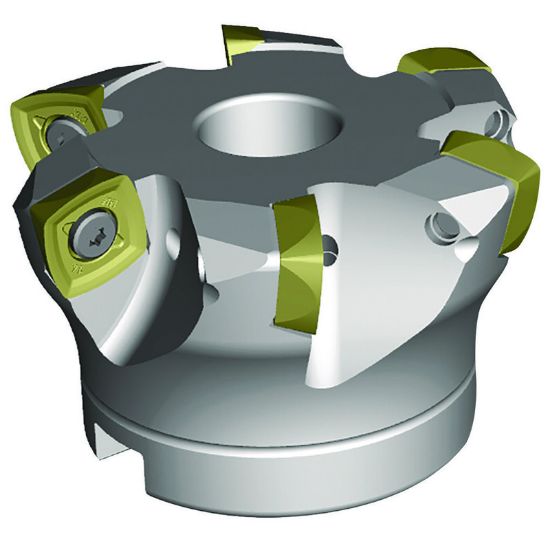

Picture of WIDIA/KENNAMETAL VXF050Z04S22XE16 Milling Cutter 1.842 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL VXF050Z04S22XE16 Milling Cutter 1.842 Cutter Diameter Face Mill 0.866

ANSI: VXF050Z04S22XE16

ISO: VXF050Z04S22XE16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6597776
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Face Milling, Slot Milling
Insert Application General Purpose
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.8425 46.80MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Overall Len 1.7717 45.00MM
Cut Dia Min 1.0720 27.23MM
Tool Material Steel
Insert Size Ic 1605
Depth Of Cut Max 0.1378
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style XE
Max Ramp Angle 1.36°
