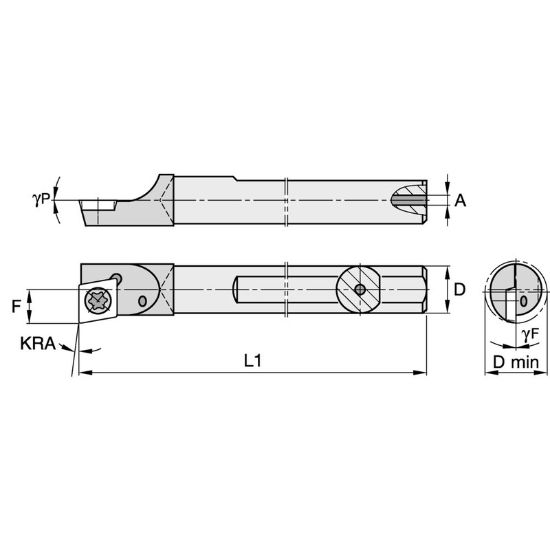

Picture of WIDIA/KENNAMETAL QCMI50085R Carbide Boring Bar 80.0° Boring Bar 0.500 Shank

WIDIA/KENNAMETAL QCMI50085R Carbide Boring Bar 80.0° Boring Bar 0.500 Shank

ANSI: QCMI50085R

ISO: QCMI50085R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2825105
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Details

CARBIDE SHANK GROOVING THREADI

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Flutes/Inserts 1
Tool Material Carbide
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Lead Angle 95°
Overall Len 8.0000 203.20MM
Min Bore 0.5450
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Inter/Extern Internal
Insert Style CP
