Picture of WIDIA/KENNAMETAL QCBIW37563L Carbide Trigon Insert Boring Bar 0.375

WIDIA/KENNAMETAL QCBIW37563L Carbide Trigon Insert Boring Bar 0.375

ANSI: QCBIW37563L

ISO: QCBIW37563L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2825327
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Int.Turning
Insert Application General Purpose
Made In USA No
Shipping State Pennsylvania

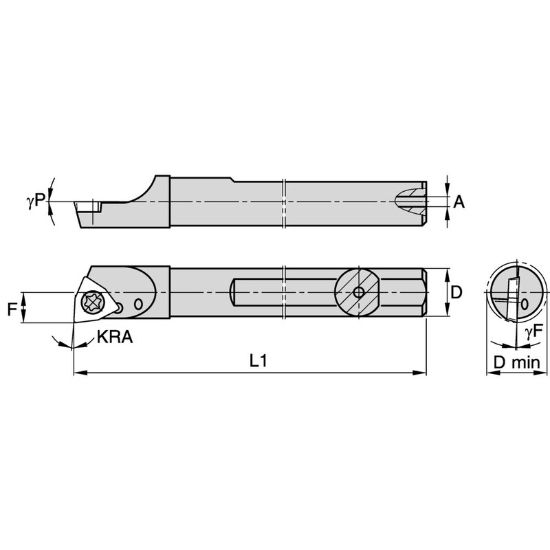

Dimensional Specifications
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 1
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Min Bore 0.4130
Insert Size Ic 21
Lead Angle 93°
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Insert Style WP
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Left
