Picture of WIDIA/KENNAMETAL GCPI37560R Carbide 45.0° Insert Boring Bar 0.375

WIDIA/KENNAMETAL GCPI37560R Carbide 45.0° Insert Boring Bar 0.375

ANSI: GCPI37560R

ISO: GCPI37560R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2827775
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Details

CARBIDE SHANK PROFILING BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Made In USA No

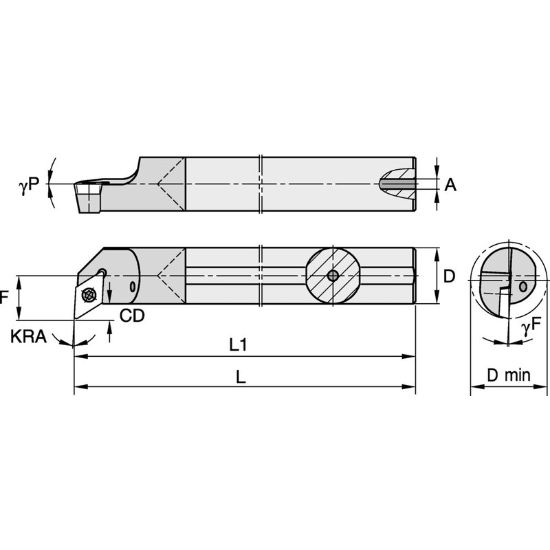

Dimensional Specifications
Insert Size Ic 06 "1.5"
Min Bore 0.5150
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 1
Overall Len 6.0000 152.40MM
Lead Angle 90°
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Insert Style GC
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape 45.0°
Inter/Extern Internal
