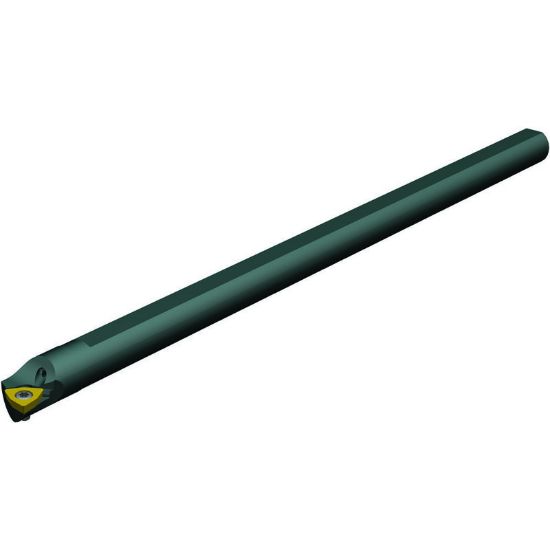

Picture of WIDIA/KENNAMETAL GCBIW31263L Carbide Trigon Insert Boring Bar 0.312

WIDIA/KENNAMETAL GCBIW31263L Carbide Trigon Insert Boring Bar 0.312

ANSI: GCBIW31263L

ISO: GCBIW31263L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2827727
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Pennsylvania
Application Int.Turning
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 6.0000 152.40MM
Min Bore 0.3470
Insert Size Ic 03 "1.5"
Flutes/Inserts 1
Lead Angle 93°
Tool Material Carbide
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3125 7.94MM
Cutting & Machining Properties
Insert Style WP
Coolant Thru Yes
Hand R/L Left
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern Internal
