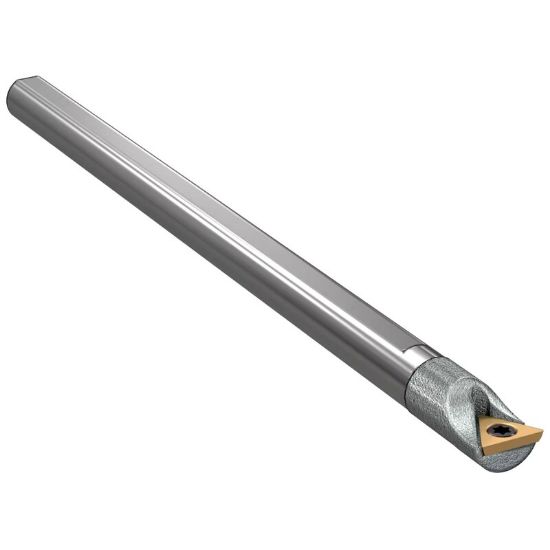

Picture of WIDIA/KENNAMETAL FCBI31265L Carbide Triangle Insert Boring Bar 0.312

WIDIA/KENNAMETAL FCBI31265L Carbide Triangle Insert Boring Bar 0.312

ANSI: FCBI31265L

ISO: FCBI31265L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2829770
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3125 7.94MM
Flutes/Inserts 1
Lead Angle 90°
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 6.0000 152.40MM
Min Bore 0.3580
Insert Size Ic 07 "13"
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TD
Inter/Extern Internal
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
