Picture of WIDIA/KENNAMETAL E16RSCLCR09T3 80.0° Insert Boring Bar 0.629

WIDIA/KENNAMETAL E16RSCLCR09T3 80.0° Insert Boring Bar 0.629

ANSI: E16RSCLCR09T3

ISO: E16R-SCLCR09T3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2023614
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

WIDIA LR SERIES BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive

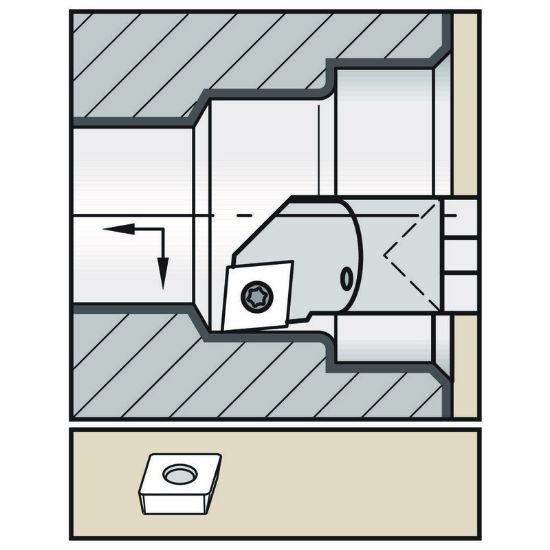

Application Int.Turning
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 09 "32"
Machine Side Connection Type Boring Bar
Overall Len 7.8740 200.00MM
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 1
Min Bore 0.7874
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Insert Style CC
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
