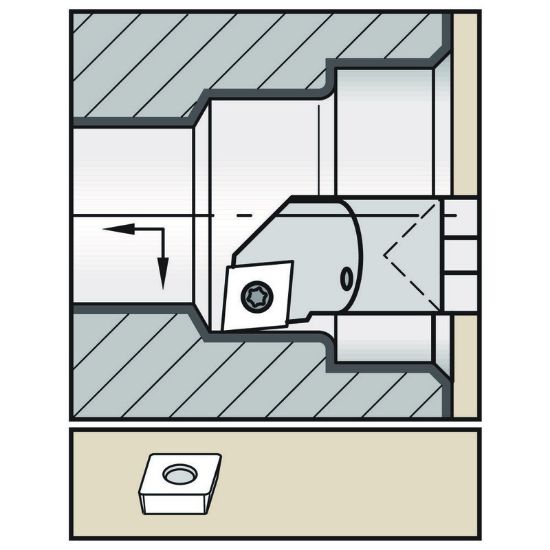

Picture of WIDIA/KENNAMETAL E10MSCLCR06 80.0° Insert Boring Bar 0.393

WIDIA/KENNAMETAL E10MSCLCR06 80.0° Insert Boring Bar 0.393

ANSI: E10MSCLCR06

ISO: E10MSCLCR06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2031021
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

WIDIA LR SERIES BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Lead Angle 95°
Min Bore 0.5118
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Tool Material Carbide
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 5.9547 151.25MM
Flutes/Inserts 1
Machine Side Connection Size 0.3937 10.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CC
Coolant Thru Yes
Inter/Extern Internal
