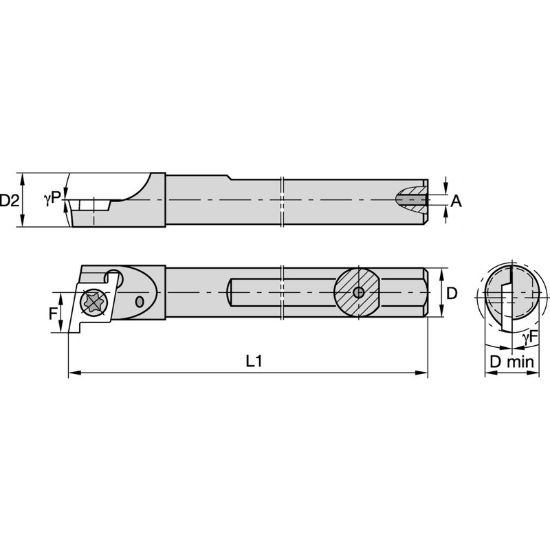

Picture of WIDIA/KENNAMETAL CCMI25040R Carbide Boring Bar 80.0° Boring Bar 0.250 Shank

WIDIA/KENNAMETAL CCMI25040R Carbide Boring Bar 80.0° Boring Bar 0.250 Shank

ANSI: CCMI25040R

ISO: CCMI25040R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2831838
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Details

CARBIDE SHANK GROOVING THREADING

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Application Back Turning, Int.Turning
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Flutes/Inserts 1
Min Bore 0.3120
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Insert Size Ic 16 "6"
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CD
Hand R/L Right
Inter/Extern Internal
