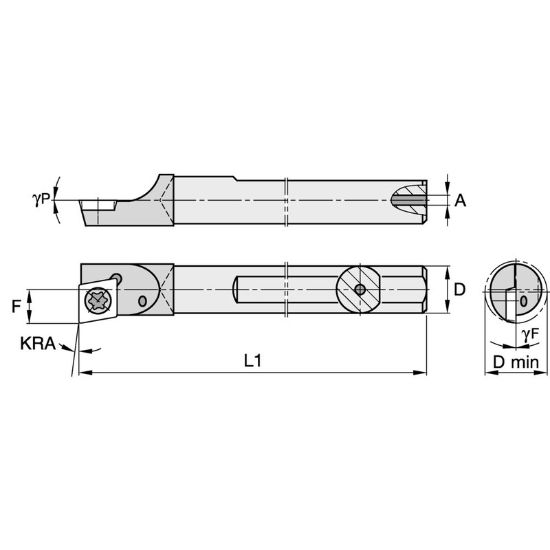

Picture of WIDIA/KENNAMETAL CCBI25045R Carbide 80.0° Insert Boring Bar 0.250

WIDIA/KENNAMETAL CCBI25045R Carbide 80.0° Insert Boring Bar 0.250

ANSI: CCBI25045R

ISO: CCBI25045R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2832049
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Insert Size Ic 12
Flutes/Inserts 1
Overall Len 4.0000 101.60MM
Min Bore 0.2850
Machine Side Connection Type Boring Bar
Lead Angle 95°
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CD
Coolant Thru Yes
