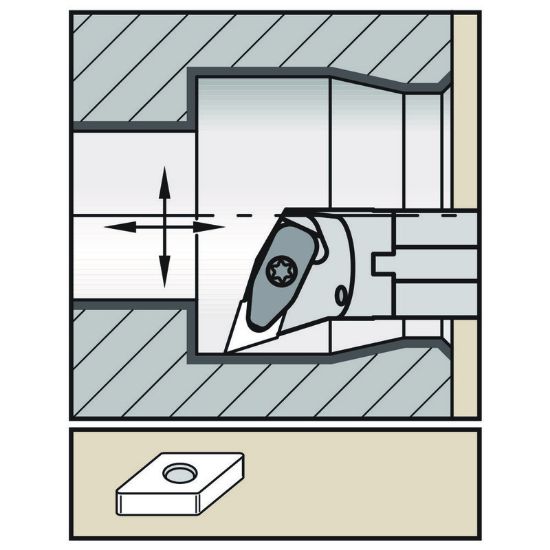

Picture of WIDIA/KENNAMETAL A32SDDQNR15KC06 55.0° Insert Boring Bar 1.259

WIDIA/KENNAMETAL A32SDDQNR15KC06 55.0° Insert Boring Bar 1.259

ANSI: A32SDDQNR15KC06

ISO: A32SDDQNR15KC06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5696085
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

KENCLAMP STEEL BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Int.Turning
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Lead Angle 107.5°
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2598 32.00MM
Overall Len 9.8430 250.01MM
Min Bore 1.5750
Insert Size Ic 15 "44"
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 1
Clearance Angle 15.5°
Tool Material Steel
Cutting & Machining Properties
Insert Style DN
Coolant Thru Yes
Cool Sply Type 1/4-18 NPT
Inter/Extern Internal
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
