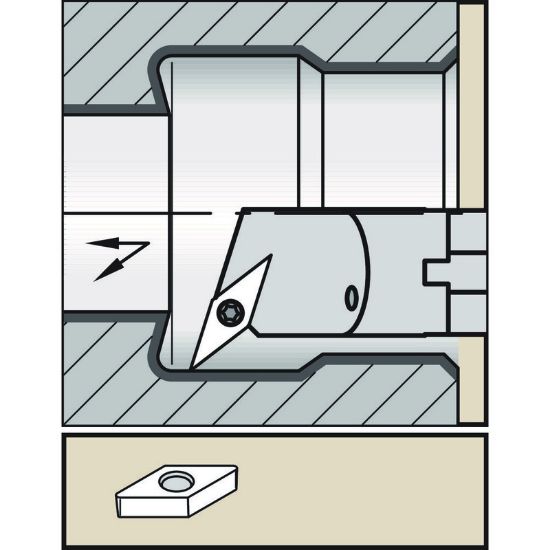

Picture of WIDIA/KENNAMETAL A25TSVQBR16 35.0° Insert Boring Bar 0.984

WIDIA/KENNAMETAL A25TSVQBR16 35.0° Insert Boring Bar 0.984

ANSI: A25TSVQBR16

ISO: A25TSVQBR16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3883434
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

LR SERIES BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Int.Turning
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Lead Angle 117.5°
Machine Side Connection Type Boring Bar
Overall Len 11.8110 300.00MM
Clearance Angle 25.5°
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 1
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Min Bore 1.2600
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 35.0°
Cool Sply Type 1/4-18 NPT
Hand R/L Right
Insert Style VB
