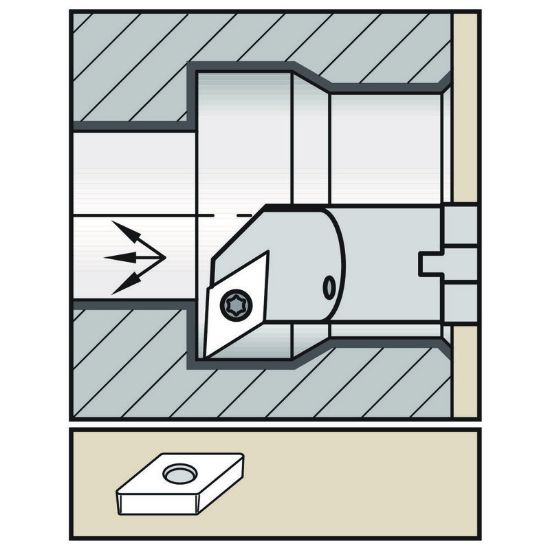

Picture of WIDIA/KENNAMETAL A20SSDUCR11 55.0° Insert Boring Bar 0.787

WIDIA/KENNAMETAL A20SSDUCR11 55.0° Insert Boring Bar 0.787

ANSI: A20SSDUCR11

ISO: A20SSDUCR11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3883291
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

LR SERIES BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Made In USA No
Insert Application General Purpose
Shipping State Pennsylvania
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7874 20.00MM
Min Bore 0.9843
Overall Len 9.8425 250.00MM
Flutes/Inserts 1
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.7874 20.00MM
Clearance Angle 30.0°
Insert Size Ic 11 "32"
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 55.0°
Cool Sply Type 1/8-27 NPT
Hand R/L Right
Insert Style DC
Coolant Thru Yes
