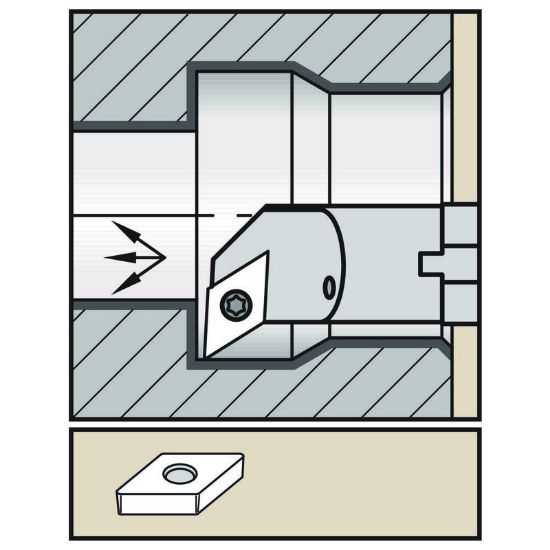

Picture of WIDIA/KENNAMETAL A10KSDUCR07 55.0° Insert Boring Bar 0.393

WIDIA/KENNAMETAL A10KSDUCR07 55.0° Insert Boring Bar 0.393

ANSI: A10KSDUCR07

ISO: A10KSDUCR07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3883297
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

LR SERIES BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Int.Turning
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Boring Bar
Insert Size Ic 07 "21"
Min Bore 0.5118
Overall Len 4.9213 125.00MM
Flutes/Inserts 1
Lead Angle 93°
Shank/Pilot Dia 0.3937 10.00MM
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Size 0.3937 10.00MM
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern Internal
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
