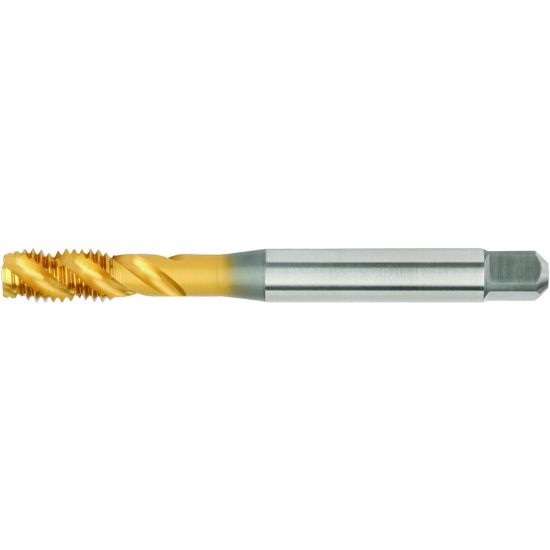

WIDIA/KENNAMETAL 6172509 M14-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6172509
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Coating DLC
Package Size 1
Dimensional Specifications
Dimension Standard DIN/DIN
Thread Size M14
Tool Material Steel
Overall Len 3.9450 100.20MM
Flute Direction R - Right
Flutes/Inserts 4
Drill Range 0.5000 12.70MM - 0.5130 13.03MM
Length Type Standard
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.4331 11.00MM
Tap Type Mod Bottom
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 2.5P-3.0P
Thread Limit 6H
Tap Style Cut Spiral Flute
Thread Pitch 1.25MM
Tap Square 0.3540
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
