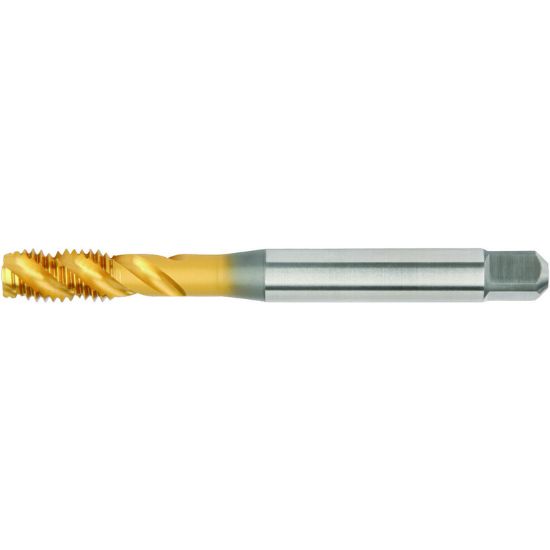

WIDIA/KENNAMETAL 5402190 M8-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5402190
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Length Type Standard
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tool Material Steel
Overall Len 3.5430 89.99MM
Thread Size M8
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Shank/Pilot Dia 0.2362 6.00MM
Tap Chamfer 2.5P-3.0P
Thread Limit 6H
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
