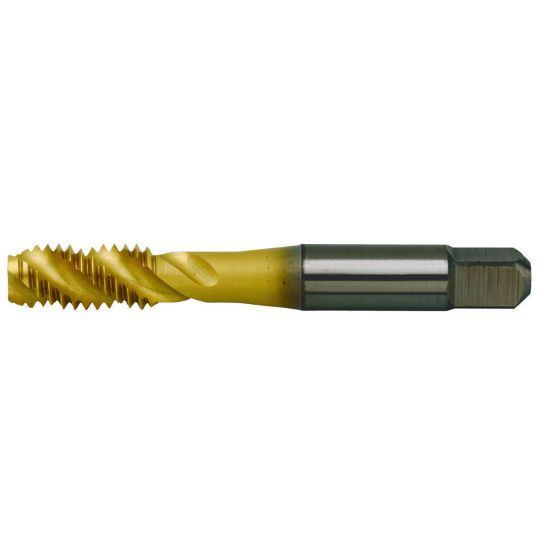

WIDIA/KENNAMETAL 5398798 M10-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5398798
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Ohio
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Tap Square 0.2170
Thread Pitch 1.50MM
Tool Material Steel
Shank/Pilot Dia 0.2756 7.00MM
Flute Direction R - Right
Length Type Standard
Dimension Standard JIS
Overall Len 2.9500 74.93MM
Flutes/Inserts 3
Thread Type Metric
Thread Size M10
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 2.5P-3.0P
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
