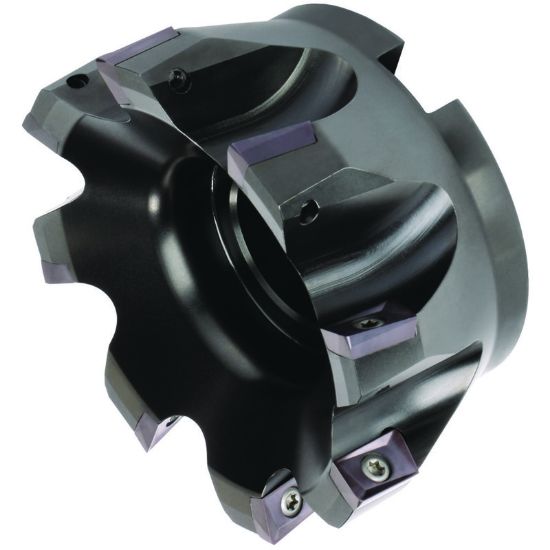

Picture of WIDIA/KENNAMETAL 12396903800 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12396903800 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: 12396903800

ISO: 12396903800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003553
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

General-purpose shoulder mill. Excellent selection of grades and geometries. Strong insert providing high reliability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutter Dia 1.9690 50.01MM
Insert Size Ic 16
Length Of Cut 0.5510 14.00MM
Flutes/Inserts 4
Tool Material Steel
Overall Len 1.5750 40.01MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XP
Hand R/L Right
