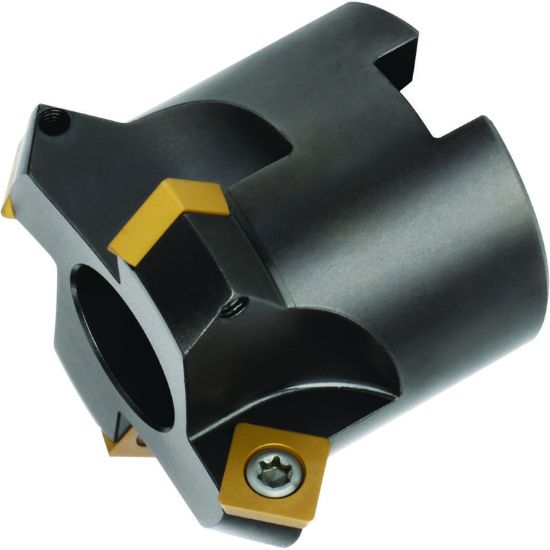

Picture of WIDIA/KENNAMETAL 12292511600 45.0° Milling Cutter 3.138 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL 12292511600 45.0° Milling Cutter 3.138 Cutter Diameter Face Mill 0.866

ANSI: 12292511600

ISO: 12292511600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2022633
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Chamfer milling in steel, stainless steel, and cast Iron.

Products specifications
Attribute name Attribute value
General Product Information
Application Back Chamfering, Face Milling, Chamfering
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Insert Size Ic 12 "43"
Cutter Dia 3.1380 79.71MM
Cut Dia Min 2.4800 62.99MM
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Chamfer Angle 45.0°
Depth Of Cut Max 0.3270
Tool Material Steel
Overall Len 1.5750 40.01MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SP
