VARDEX NL100-5MG12ISO Stick Tool Proprietary

ANSI: NL100-5MG12ISO

ISO: NL100-5MG12ISO

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR66450
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

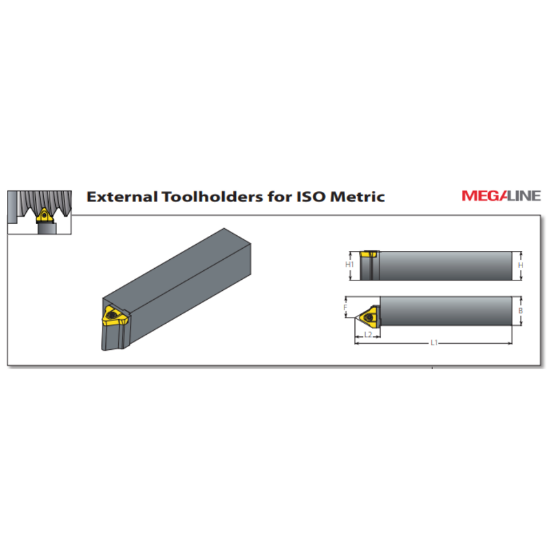

Thread Turning Mega Line Holders EX RH 1" (Inch)x1" (Inch) Shank, Insert Compatibility for 5MGER

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Ext.Threading
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.1000 154.94MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 5MGER
Tool Over Hang 0.8700
Tool Width 1.0000
Cutting & Machining Properties
Insert Style VA
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Hand R/L Right
Fasteners & Connectors
Clamp Screw S5MG
