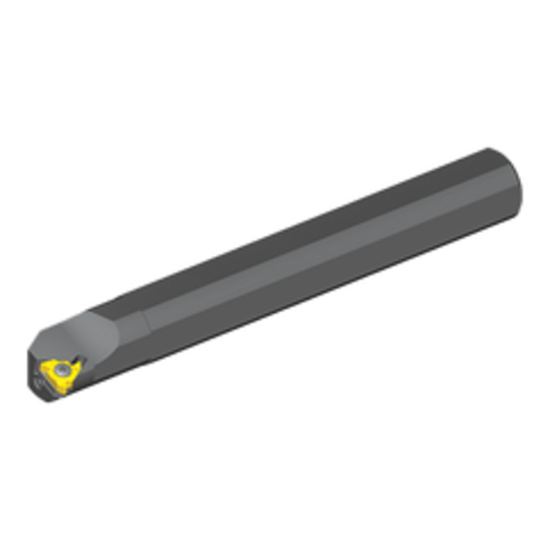

Picture of VARDEX AVR20-3LH Boring Bar Iso Thread

VARDEX AVR20-3LH Boring Bar Iso Thread

ANSI: AVR20-3LH

ISO: AVR20-3LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR001-00258
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Thread Turning Standard Holders IN LH Shank Diameter 20 (mm), Tool Overhang 80 (mm), Insert Compatibility for 3IL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Int.Groove Threading, Int.Threading
Package Size 1
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 7.0866 180.00MM
Insert Size Ic 16
Machine Side Connection Type Boring Bar
Min Bore 0.9449
Tool Material Steel
Neck Dia 0.7874
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest YE3
Insert Style ISO
Fasteners & Connectors
Clamp Screw SA3T
Seat Screw SY3T
