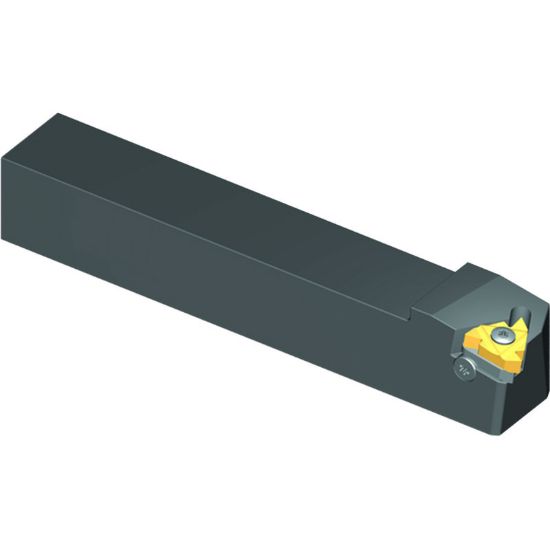

Picture of VARDEX AL125-5LH Stick Tool Iso Thread

VARDEX AL125-5LH Stick Tool Iso Thread

ANSI: AL125-5LH

ISO: AL125-5LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR66055
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Thread Turning Standard Holders EX LH 1.25" (Inch)x1.25" (Inch) Shank, Insert Compatibility for 5EL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Ext.Groove Threading, Ext.Threading
Package Size 1
Dimensional Specifications
Insert Size Ic 27
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Tool Over Hang 1.5700
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 7.0000 177.80MM
Tool Width 1.2500
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest YI5
Inter/Extern External
Coolant Thru No
Insert Style ISO
Fasteners & Connectors
Seat Screw SY5T
Clamp Screw SA5T
