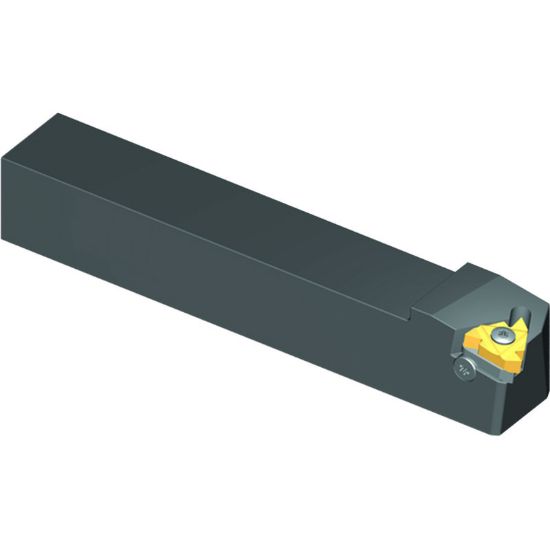

Picture of VARDEX AL100-5LH Stick Tool Iso Thread

VARDEX AL100-5LH Stick Tool Iso Thread

ANSI: AL100-5LH

ISO: AL100-5LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR66035
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Thread Turning Standard Holders EX LH 1" (Inch)x1" (Inch) Shank, Insert Compatibility for 5EL

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Threading, Ext.Threading
Insert/Tool Tool
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 27
Machine Side Connection Type Stick Tool
Tool Over Hang 1.5700
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Insert Style ISO
Seat/Nest YI5
Fasteners & Connectors
Seat Screw SY5T
Clamp Screw SA5T
