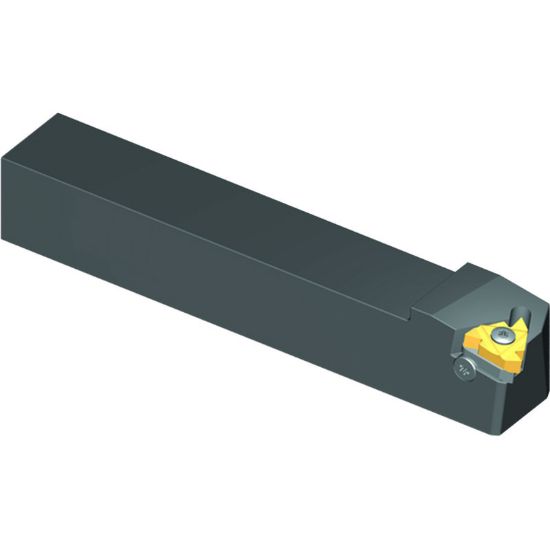

Picture of VARDEX AL100-3LH Stick Tool Iso Thread

VARDEX AL100-3LH Stick Tool Iso Thread

ANSI: AL100-3LH

ISO: AL100-3LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR66022
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Thread Turning Standard Holders EX LH 1" (Inch)x1" (Inch) Shank, Insert Compatibility for 3EL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Insert
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Ext.Groove Threading, Ext.Threading
Package Size 1
Dimensional Specifications
Overall Len 6.0000 152.40MM
Tool Width 1.0000
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.2000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Insert Style ISO
Hand R/L Left
Seat/Nest YI3
Coolant Thru No
Fasteners & Connectors
Seat Screw SY3T
Clamp Screw SA3T
