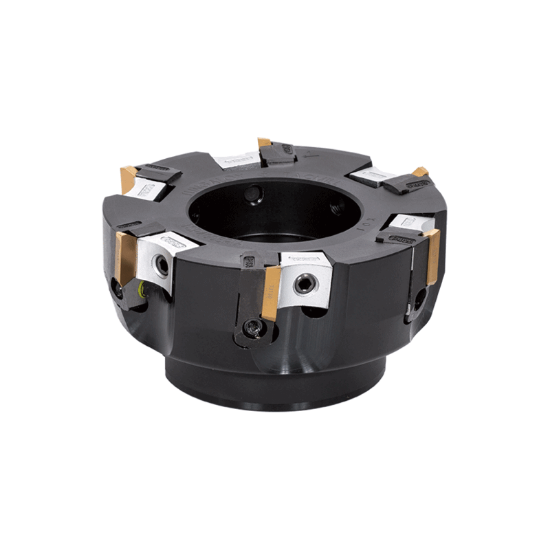

Picture of TUNGALOY TSP4005RIA Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

TUNGALOY TSP4005RIA Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

ANSI: TSP4005RIA

ISO: TSP4005RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809355
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 43
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.9210 124.99MM
Flutes/Inserts 6
Depth Of Cut Max 0.0394
Cut Dia Max 4.9210 124.99MM
Cutting & Machining Properties
Seat/Nest 6805132
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Right
Insert Style TP
Fasteners & Connectors
Seat Screw 6801818
Clamp Screw 6804584
Clamp/Wedge 6809563
