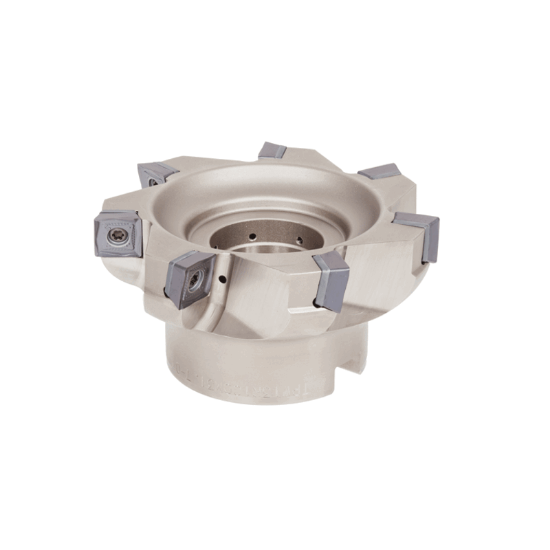

Picture of TUNGALOY TPW13R500U0150A12 Milling Cutter 90.0° 5.000 Cutter Diameter Shell Arbor 1.5000 12 Flute

TUNGALOY TPW13R500U0150A12 Milling Cutter 90.0° 5.000 Cutter Diameter Shell Arbor 1.5000 12 Flute

ANSI: TPW13R500U0150A12

ISO: TPW13R500U0150A12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6850807
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Side Milling, Face Milling
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Max 5.0000 127.00MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.1970
Flutes/Inserts 12
Insert Size Ic 13
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Style SW
Seat/Nest 6846766
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
