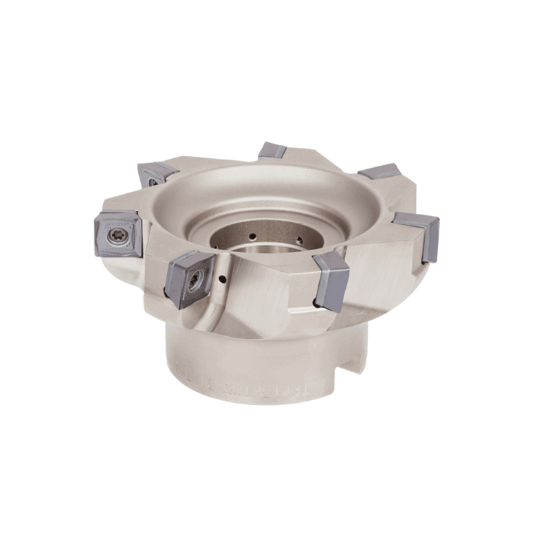

Picture of TUNGALOY TPW13R160M50.8-12 Milling Cutter 90.0° 6.299 Cutter Diameter Shell Arbor 2.0000 12 Flute

TUNGALOY TPW13R160M50.8-12 Milling Cutter 90.0° 6.299 Cutter Diameter Shell Arbor 2.0000 12 Flute

ANSI: TPW13R160M50.8-12

ISO: TPW13R160M50.8-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849814
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Application Side Milling, Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Max 6.2990 159.99MM
Machine Side Connection Size 2.0000 50.80MM
Depth Of Cut Max 0.1969
Cut Dia Min 6.2990 159.99MM
Flutes/Inserts 12
Cutter Dia 6.2990 159.99MM
Insert Size Ic 13
Cutting & Machining Properties
Seat/Nest 6846766
Insert Style SW
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
