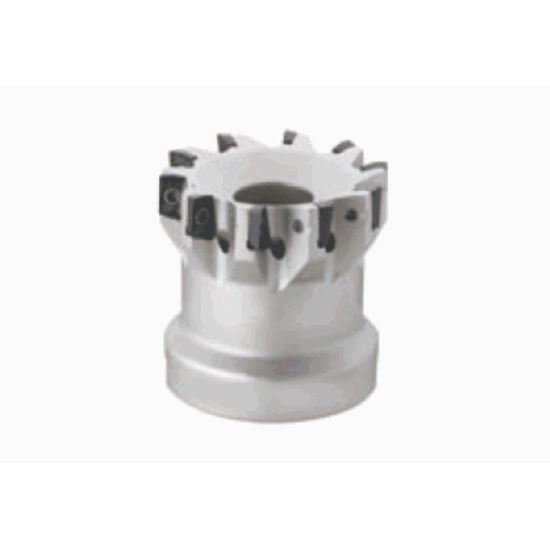

Picture of TUNGALOY TPO07R050M22.0E12 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 12 Flute

TUNGALOY TPO07R050M22.0E12 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 12 Flute

ANSI: TPO07R050M22.0E12

ISO: TPO07R050M22.0E12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861310
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.9690 50.01MM
Tool Material Steel
Flutes/Inserts 12
Depth Of Cut Max 0.6300
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Insert Size Ic 7
Cut Dia Max 1.9690 50.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7066668
