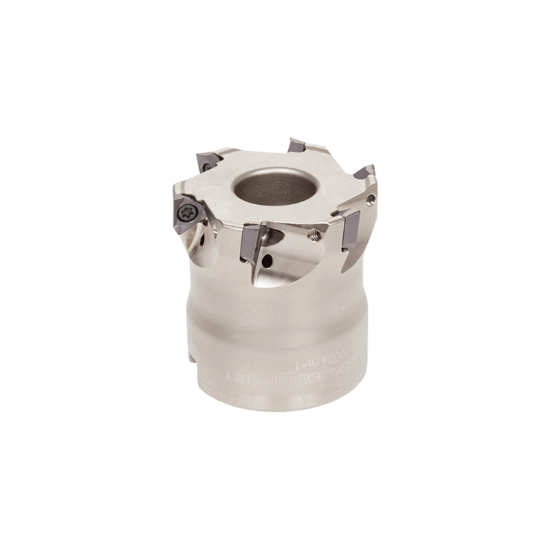

Picture of TUNGALOY TPA06R050M22.0E08 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 8 Flute

TUNGALOY TPA06R050M22.0E08 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 8 Flute

ANSI: TPA06R050M22.0E08

ISO: TPA06R050M22.0E08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996222
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Depth Of Cut Max 0.0394
Cut Dia Min 1.9690 50.01MM
Flutes/Inserts 8
Insert Size Ic 6
Cutter Dia 1.9670 49.96MM
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Max 1.9690 50.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6802565
