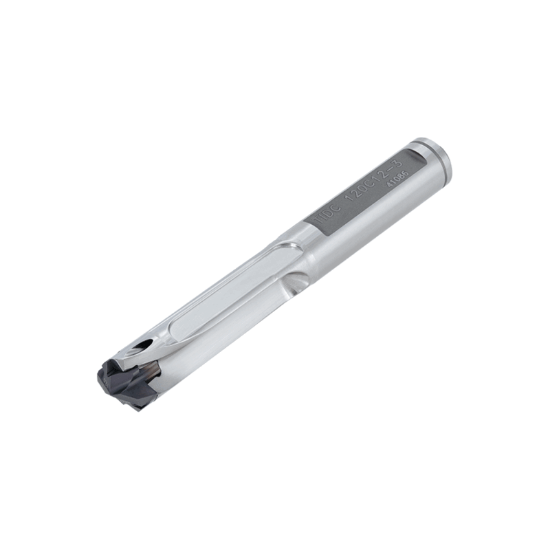

Picture of TUNGALOY TIDC170C17-3 0.6693" Drill Meister TIDC L/D=3 Indexable head Drill s

TUNGALOY TIDC170C17-3 0.6693" Drill Meister TIDC L/D=3 Indexable head Drill s

ISO: TIDC170C17-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6877853
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Insert Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 0.6692 17.00MM
Shank/Pilot Dia 0.6692 17.00MM
Flute Length 2.1260 54.00MM
Included Angle 136°
Cut Dia Min 0.6692 17.00MM
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 0.7047 17.90MM
Machine Side Connection Size 0.6693 17.00MM
Flutes/Inserts 2
Overall Len 4.7130 119.71MM
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
