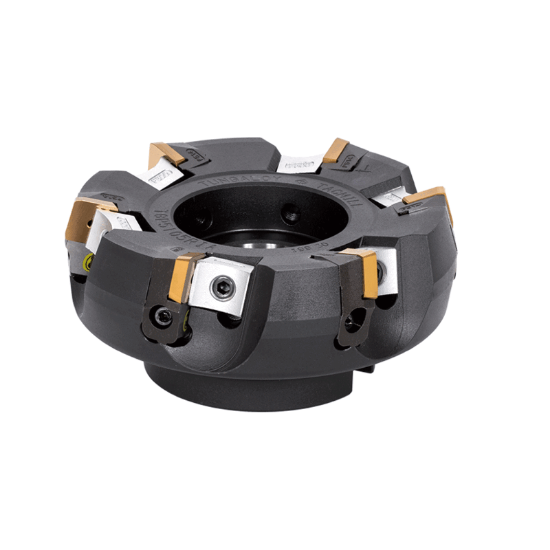

Picture of TUNGALOY TGP5108RIA Milling Cutter 75.0° 7.874 Cutter Diameter Shell Arbor 1.8750 10 Flute

TUNGALOY TGP5108RIA Milling Cutter 75.0° 7.874 Cutter Diameter Shell Arbor 1.8750 10 Flute

ANSI: TGP5108RIA

ISO: TGP5108RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807974
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 7.8740 200.00MM
Insert Size Ic 53
Cutter Dia 7.8740 200.00MM
Machine Side Connection Size 1.8750 47.63MM
Flutes/Inserts 10
Depth Of Cut Max 0.2362
Cut Dia Max 8.1500 207.01MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6805136
Insert Style SP
Fasteners & Connectors
Clamp Screw 6801818
Clamp/Wedge 6809567
