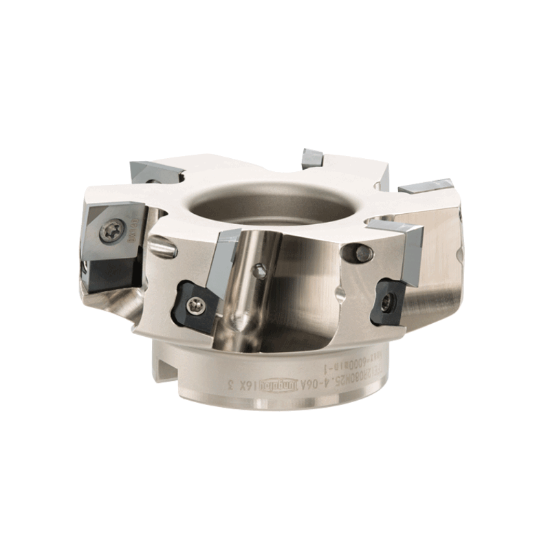

Picture of TUNGALOY TFE12R080M27.0E06A Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 6 Flute

TUNGALOY TFE12R080M27.0E06A Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 6 Flute

ANSI: TFE12R080M27.0E06A

ISO: TFE12R080M27.0E06A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6748506
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Flutes/Inserts 6
Insert Size Ic 12
Depth Of Cut Max 0.3150
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.1500 80.01MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SE
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 6802575
Clamp Screw 6805273
Clamp/Wedge 6748509
