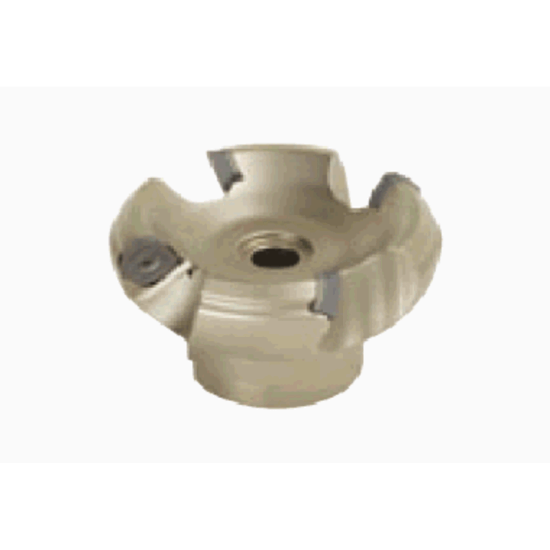

Picture of TUNGALOY TAW13R200U0075A03 Milling Cutter 45.0° 2.000 Cutter Diameter Shell Arbor 0.7500 3 Flute

TUNGALOY TAW13R200U0075A03 Milling Cutter 45.0° 2.000 Cutter Diameter Shell Arbor 0.7500 3 Flute

ANSI: TAW13R200U0075A03

ISO: TAW13R200U0075A03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6850809
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Application Face Milling
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.4170
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.5100 63.75MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Insert Size Ic 13
Cutting & Machining Properties
Insert Style SW
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6846767
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
