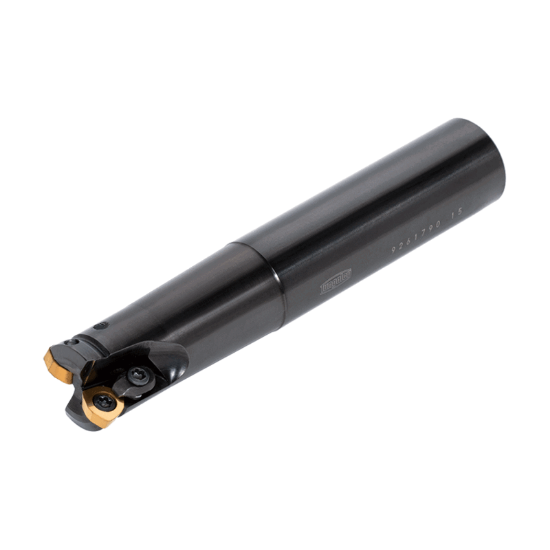

Picture of TUNGALOY EXP05075RLU Milling Cutter 0.750 Cutter Diameter Cylindrical Shank0.7500 7.000 OAL 2 Flute

TUNGALOY EXP05075RLU Milling Cutter 0.750 Cutter Diameter Cylindrical Shank0.7500 7.000 OAL 2 Flute

ANSI: EXP05075RLU

ISO: EXP05075RLU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6851055
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Copy Milling, Feed Milling
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 0.7500 19.05MM - 3/4
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Cylindrical
Overall Len 7.0000 177.80MM
Flutes/Inserts 2
Depth Of Cut Max 0.0600
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 6817338
