  • TUNGALOY EXLN04M020C20.0R02 Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 2 Flute

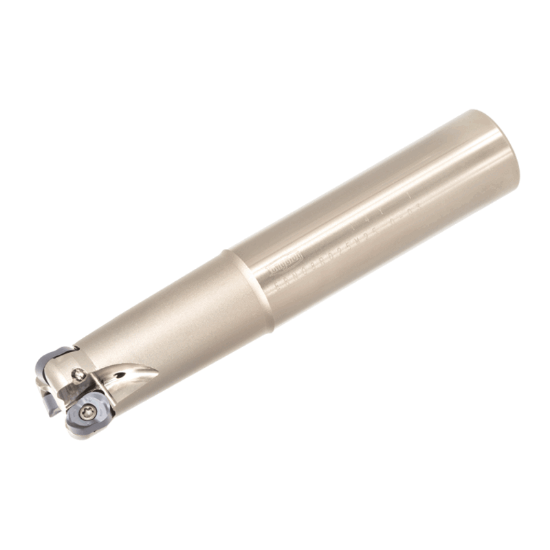

Picture of TUNGALOY EXLN04M020C20.0R02 Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 2 Flute

TUNGALOY EXLN04M020C20.0R02 Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 2 Flute

ANSI: EXLN04M020C20.0R02

ISO: EXLN04M020C20.0R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733129
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 2
Cut Dia Min 0.7870 19.99MM
Overall Len 5.1181 130.00MM
Insert Size Ic 40
Depth Of Cut Max 0.1575
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Type Cylindrical
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style LN
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815315
