  • TUNGALOY EVX12100RLHU Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.0000 8.750 OAL 2 Flute

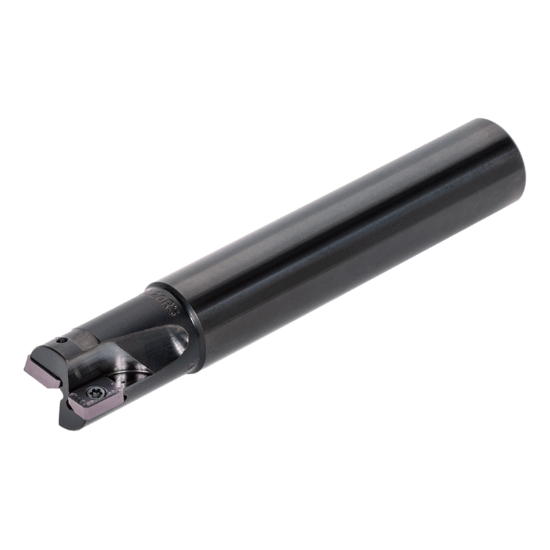

Picture of TUNGALOY EVX12100RLHU Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.0000 8.750 OAL 2 Flute

TUNGALOY EVX12100RLHU Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.0000 8.750 OAL 2 Flute

ANSI: EVX12100RLHU

ISO: EVX12100RLHU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821661
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ramp Milling, Slot Milling, Plunge Milling, Shoulder Milling, Drilling, Pocket Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.4170
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 8.7500 222.25MM
Flutes/Inserts 2
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style XX
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815315
