  • TUNGALOY ERC16R040M32.0-02LL Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 11.81 OAL 2 Flute

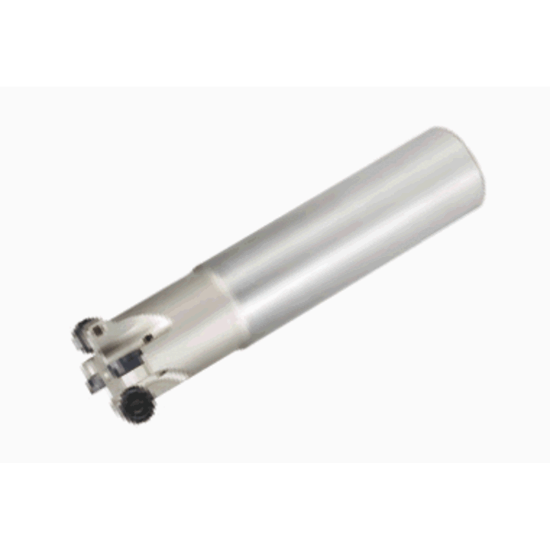

Picture of TUNGALOY ERC16R040M32.0-02LL Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 11.81 OAL 2 Flute

TUNGALOY ERC16R040M32.0-02LL Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 11.81 OAL 2 Flute

ANSI: ERC16R040M32.0-02LL

ISO: ERC16R040M32.0-02LL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028910
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Pocket Milling, Face Milling
Made In USA No
Insert/Tool Tool
Insert Type Positive
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3150
Machine Side Connection Size 1.2598 32.00MM
Overall Len 11.8110 300.00MM
Flutes/Inserts 2
Cut Dia Max 1.5750 40.01MM
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Cut Dia Min 0.9450 24.00MM
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7061740
