  • TUNGALOY EPV16R025M25.0-02L Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 6.692 OAL 2 Flute

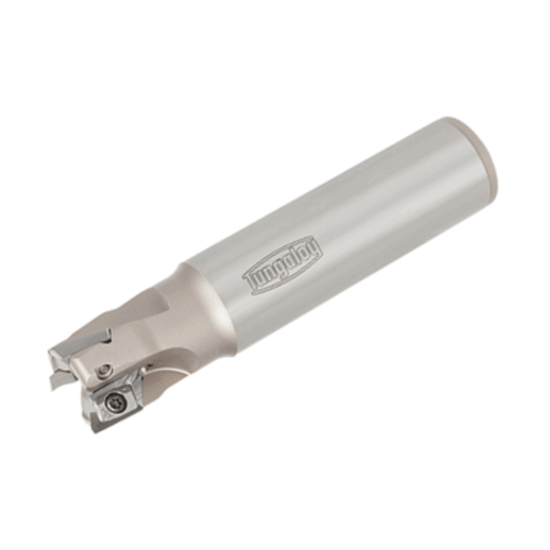

Picture of TUNGALOY EPV16R025M25.0-02L Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 6.692 OAL 2 Flute

TUNGALOY EPV16R025M25.0-02L Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 6.692 OAL 2 Flute

ANSI: EPV16R025M25.0-02L

ISO: EPV16R025M25.0-02L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3111042
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Overall Len 6.6929 170.00MM
Cut Dia Max 0.9840 24.99MM
Flutes/Inserts 2
Cut Dia Min 0.9840 24.99MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 16
Depth Of Cut Max 0.6299
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Style XV
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 4354896
