  • TUNGALOY EPS17030RS Milling Cutter 90.0° 1.181 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

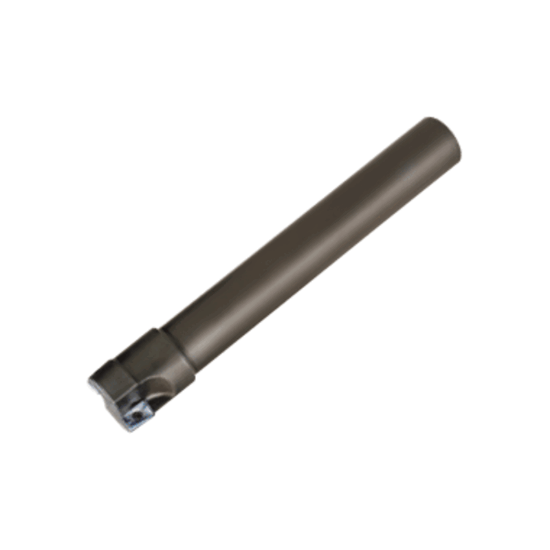

Picture of TUNGALOY EPS17030RS Milling Cutter 90.0° 1.181 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

TUNGALOY EPS17030RS Milling Cutter 90.0° 1.181 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

ANSI: EPS17030RS

ISO: EPS17030RS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821280
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Overall Len 4.5276 115.00MM
Insert Size Ic 17
Cutter Dia 1.1810 30.00MM
Cut Dia Min 1.1810 30.00MM
Flutes/Inserts 2
Cut Dia Max 1.1810 30.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Depth Of Cut Max 0.6378
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Style AS
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 6816784
