  • TUNGALOY EPS17025RL Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

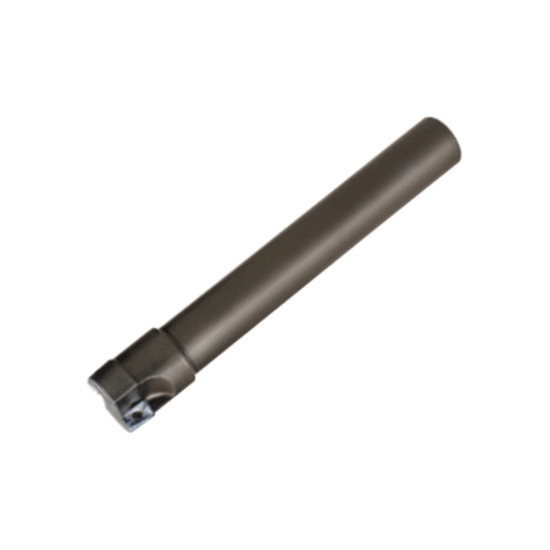

Picture of TUNGALOY EPS17025RL Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

TUNGALOY EPS17025RL Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

ANSI: EPS17025RL

ISO: EPS17025RL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821276
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 17
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cut Dia Max 0.9840 24.99MM
Flutes/Inserts 2
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Overall Len 8.6614 220.00MM
Depth Of Cut Max 0.6417
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AS
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816784
