  • TUNGALOY EPAV06U1.00C1.00R04L Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank1.0000 8.000 OAL 4 Flute

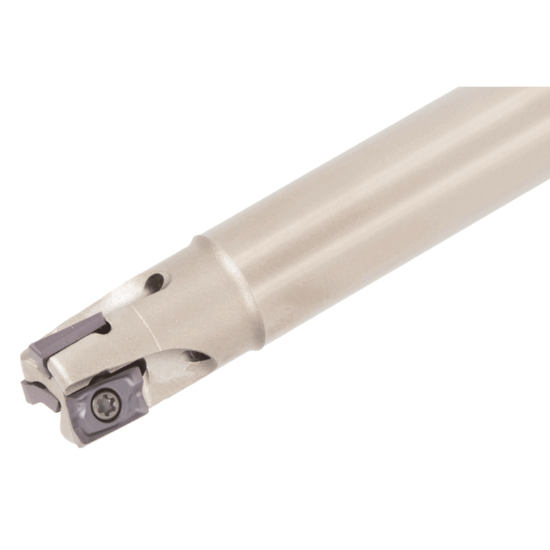

Picture of TUNGALOY EPAV06U1.00C1.00R04L Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank1.0000 8.000 OAL 4 Flute

TUNGALOY EPAV06U1.00C1.00R04L Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank1.0000 8.000 OAL 4 Flute

ANSI: EPAV06U1.00C1.00R04L

ISO: EPAV06U1.00C1.00R04L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6769903
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Overall Len 8.0000 203.20MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 6
Flutes/Inserts 4
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.2360
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Style AV
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 6851333
