  • TUNGALOY EPAV06U0.75C0.75R04L Milling Cutter 90.0° 0.750 Cutter Diameter Cylindrical Shank0.7500 7.875 OAL 4 Flute

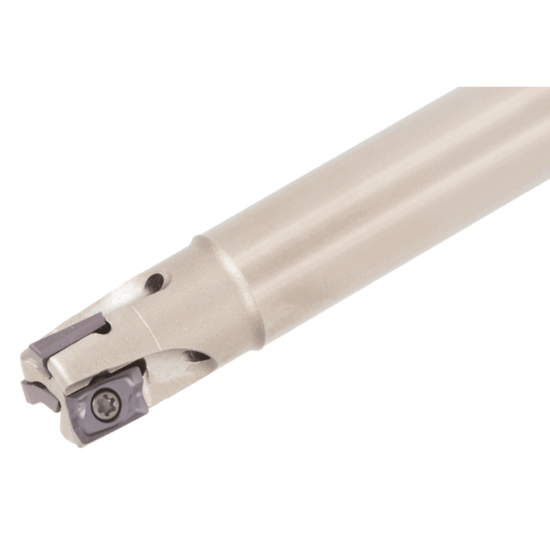

Picture of TUNGALOY EPAV06U0.75C0.75R04L Milling Cutter 90.0° 0.750 Cutter Diameter Cylindrical Shank0.7500 7.875 OAL 4 Flute

TUNGALOY EPAV06U0.75C0.75R04L Milling Cutter 90.0° 0.750 Cutter Diameter Cylindrical Shank0.7500 7.875 OAL 4 Flute

ANSI: EPAV06U0.75C0.75R04L

ISO: EPAV06U0.75C0.75R04L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6769899
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Insert Size Ic 6
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Overall Len 7.8750 200.03MM
Depth Of Cut Max 0.2360
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Cylindrical
Cut Dia Max 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AV
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6851333
