  • TUNGALOY EPA06R075U0075-03N Milling Cutter 90.0° 0.750 Cutter Diameter Cylindrical Shank0.7500 4.000 OAL 3 Flute

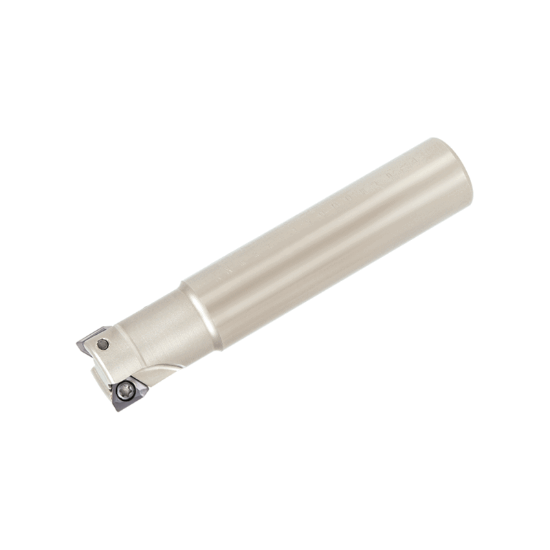

Picture of TUNGALOY EPA06R075U0075-03N Milling Cutter 90.0° 0.750 Cutter Diameter Cylindrical Shank0.7500 4.000 OAL 3 Flute

TUNGALOY EPA06R075U0075-03N Milling Cutter 90.0° 0.750 Cutter Diameter Cylindrical Shank0.7500 4.000 OAL 3 Flute

ANSI: EPA06R075U0075-03N

ISO: EPA06R075U0075-03N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996207
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Face Milling, Pocket Milling, Ramp Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.7500 19.05MM - 3/4
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Cylindrical
Insert Size Ic 6
Depth Of Cut Max 0.2360
Tool Material Steel
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6802565
