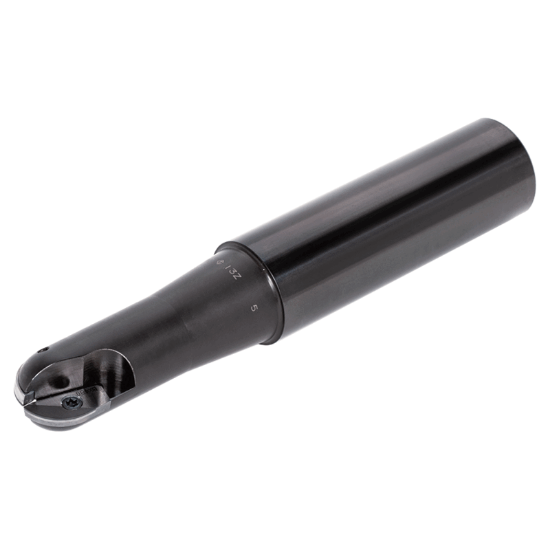

Picture of TUNGALOY EBB040MS Milling Cutter 1.575 Cutter Diameter Cylindrical Shank1.6535 9.842 OAL 2 Flute

TUNGALOY EBB040MS Milling Cutter 1.575 Cutter Diameter Cylindrical Shank1.6535 9.842 OAL 2 Flute

ANSI: EBB040MS

ISO: EBB040MS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6811067
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Max 1.5750 40.01MM
Shank/Pilot Dia 1.6535 42.00MM
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Machine Side Connection Size 1.6535 42.00MM
Machine Side Connection Type Cylindrical
Overall Len 9.8425 250.00MM
Flutes/Inserts 2
Depth Of Cut Max 1.1024
Cut Dia Min 1.5750 40.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802582
Clamp/Wedge 6802522
Only registered users can write reviews
