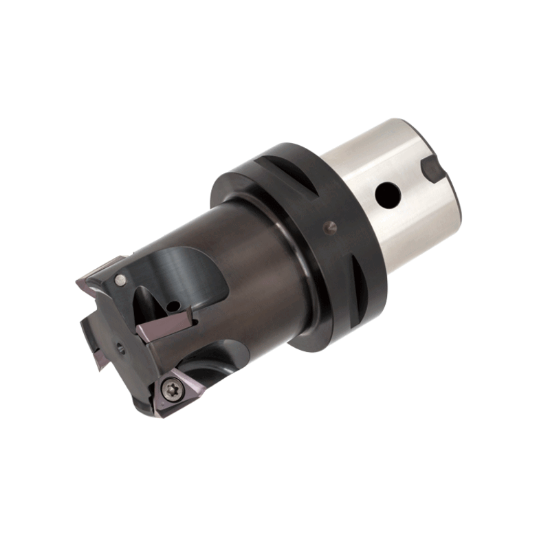

Picture of TUNGALOY C6EPA15M050R04L080 Milling Cutter 90.0° 1.967 Cutter Diameter PSC "Capto Type"6 4 Flute

TUNGALOY C6EPA15M050R04L080 Milling Cutter 90.0° 1.967 Cutter Diameter PSC "Capto Type"6 4 Flute

ANSI: C6EPA15M050R04L080

ISO: C6EPA15M050R04L080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6745437
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Face Milling, Pocket Milling, Ramp Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type PSC "Capt0 Type"
Cut Dia Min 1.9690 50.01MM
Insert Size Ic 15
Cutter Dia 1.9670 49.96MM
Flutes/Inserts 4
Tool Material Steel
Cut Dia Max 1.9690 50.01MM
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Depth Of Cut Max 2.1654
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4352056
