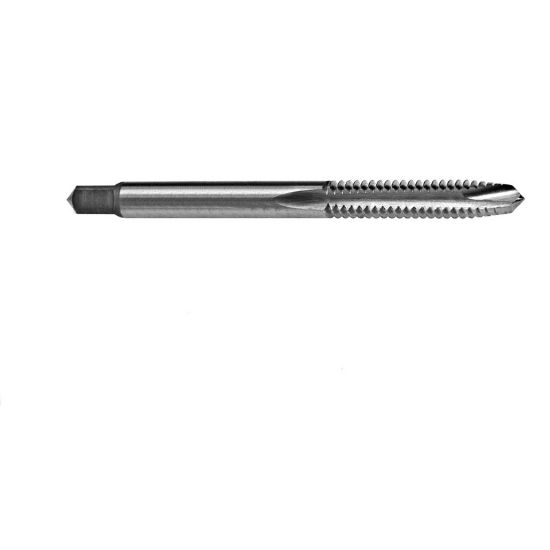

REIFF & NESTOR 14612 No.3-48.00TPI Cut Spiral Point Plug 3.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REIFF & NESTOR
SKU: REI14612
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Thread Pitch 48.00TPI
Thread Limit H1/GH1
Machine Side Connection Type Tap Collet
Overall Len 1.8125 46.04MM
Tap Style Cut Spiral Point
Thread Size No.3
Shank/Pilot Dia 0.1410 3.58MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Dimension Standard ANSI/ANSI
Tool Material Steel
Tap Square 0.1100
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.0772 1.96MM - 0.0827 2.10MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
