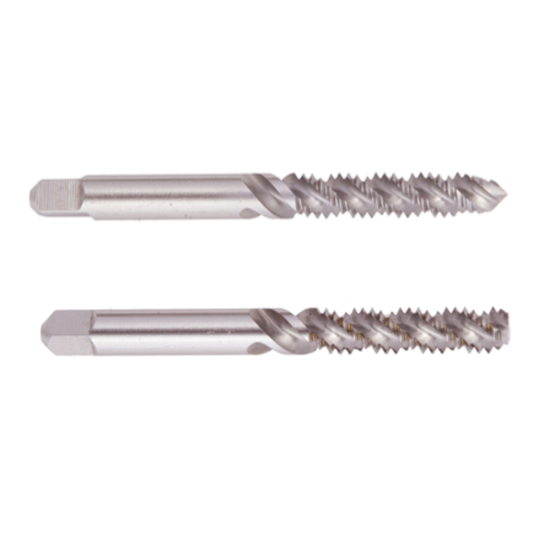

REGAL 008106AS No.4-48.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008106AS
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Thread Pitch 48.00TPI
Tap Chamfer 4.0P-5.0P
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 2
Drill Range 0.0902 2.29MM - 0.0957 2.43MM
Tap Style Hand Tap
Thread Size No.4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Tap Type Plug
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
